ServiceNow workflow actions

This guide is part of the User Guides collection. It covers the ServiceNow record actions in the workflow editor. It sits beside Building a workflow, which covers triggers, conditions, placeholders and the runs page, and Workflow templates. For what the ServiceNow integration does as a whole, and how the connection is provisioned, see the ServiceNow integration guide.

Workflows is an optional module. If you do not see Workflows in the left navigation, ask your Coverbase account team to turn it on.

A workflow can write to your ServiceNow instance as one of its steps. When an assessment finishes, it can open a Vendor Risk Management assessment record, file one risk issue per finding, attach the vendor’s evidence, and close the record when everything has landed. Each of those is an automation whose Then is one of five actions in the ServiceNow record group, and each step records the request it sent and the response ServiceNow gave. The mistake people make most often is using Create where they need Update. Create writes one record per Coverbase record and table. Every later run of it for the same Coverbase record is Skipped, because a record is already linked, so a change you want to push afterwards needs an Update step.

Before you start

The connection. The actions write through your organization’s ServiceNow connection, which is set on the ServiceNow GRC card under Configuration → External Integrations: the ServiceNow base URL, then Basic authentication or OAuth 2.0 (client credentials). Click Save ServiceNow Configuration first. Test connection only checks saved credentials, so it stays unavailable while the form has unsaved changes. The account behind the connection needs write access to every table your steps write to, and to attachments if you upload documents. Provisioning is covered in Authentication and provisioning. Saving the connection needs the role that manages integrations, by default an Admin. Where the actions appear. While Coverbase knows the connection is not saved, the action picker hides the ServiceNow record group. If you cannot read integration settings, the group stays visible, and a step that runs without a connection is Skipped with “ServiceNow integration is not configured”. ServiceNow IDs. A ServiceNow reference column stores the sys_id of the record it points at. Coverbase holds a vendor’s, service’s or assessment’s sys_id as its external ID when the record came in from ServiceNow or through the Import API, and the Insert variable menu offers it as External ID (ServiceNow sys_id) ({{vendor:external_id}}, {{service:external_id}}, {{assessment:external_id}}). A record without one skips any step that uses the variable. A sys_id you keep in a custom field works the same way, through that field’s entry in the menu. Building the automation itself needs the workflow permissions described in Building a workflow.

The five actions

Open an automation, click the action under Then, and hover ServiceNow record, or type “ServiceNow” into Search actions….

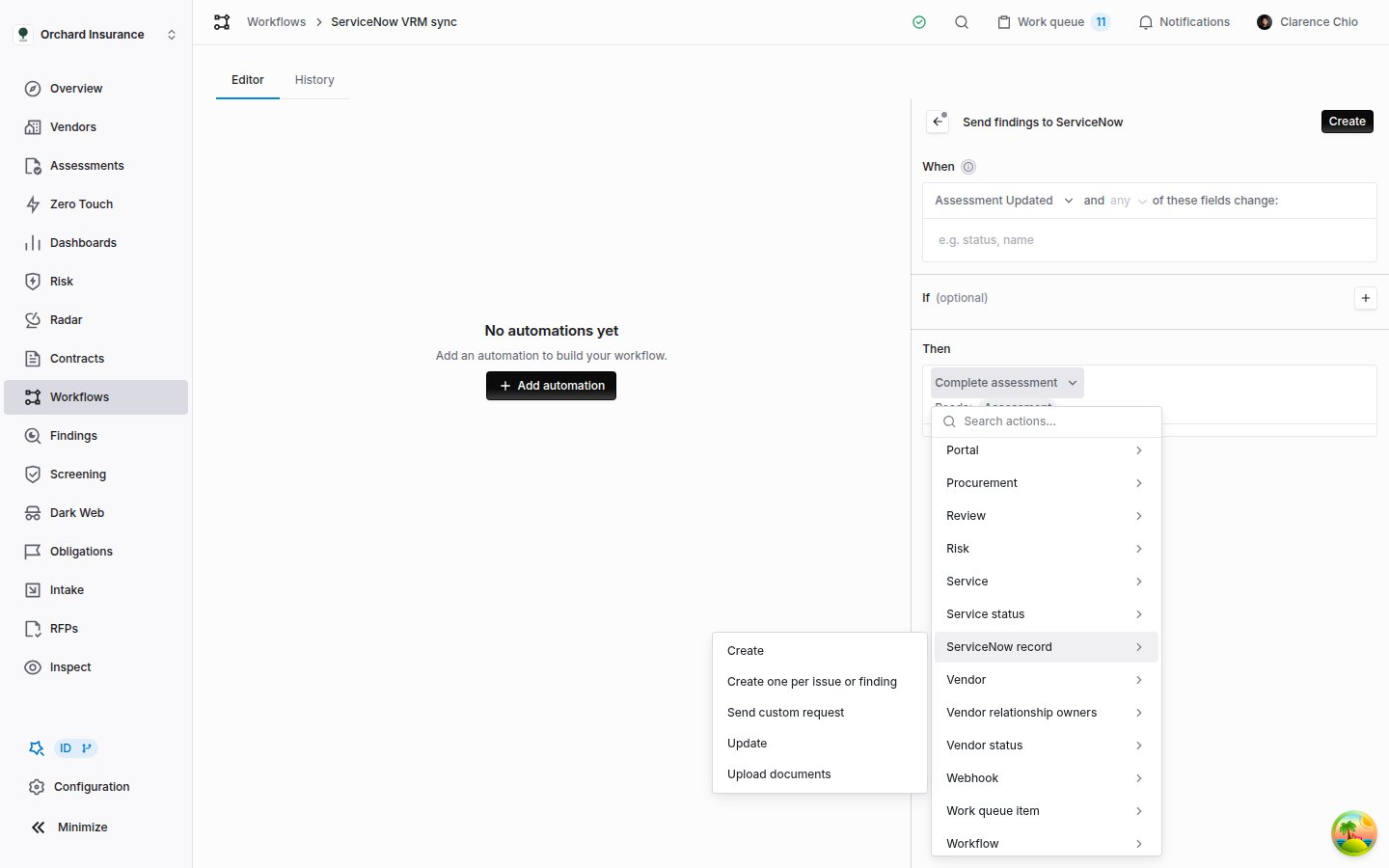

The Coverbase workflow action picker open on the ServiceNow record group, showing Create, Create one per issue or finding, Send custom request, Update and Upload documents — The ServiceNow record group in the action picker. Each item is one action type.

Action	What it does	What it raises
Create	Creates one record in a table and links it to a Coverbase record from the trigger.	Service Now Record Created
Update	Updates the record an earlier Create linked to the same Coverbase record.	Service Now Record Updated
Create one per issue or finding	Creates one record for each issue on the triggering assessment, or for each finding attached to it.	Service Now Record Created per record, then Service Now Sync Completed
Send custom request	Sends one `POST`, `PATCH` or `PUT` with a JSON body you write, to any API path on your instance.	Nothing
Upload documents	Uploads Coverbase documents into ServiceNow Document Management.	Service Now Record Created per document

Create one per issue or finding is offered only when the trigger can reach an assessment; its form shows Reads: Assessment. The events in the last column can trigger later automations, and your own systems can receive them as webhooks (ServiceNowRecord.Created, ServiceNowSync.Completed and so on); see Webhooks.

Mapping fields

Create, Update and Create one per issue or finding share the same two settings: the table, and the field mappings that become the record. ServiceNow table. Pick a table from the list, or type any table name and choose Use custom name. The list suggests the standard third-party risk tables:

Suggested table	Name in ServiceNow
Third Party (Vendor)	`core_company`
Engagement	`sn_vdr_risk_asmt_vendor_engagement`
External Assessment (VRA)	`sn_vdr_risk_asmt_assessment`
Third-party Risk Issue	`sn_vdr_risk_asmt_issue`
Document (Document Management)	`ds_document`
Document version (Document Management)	`ds_document_version`

Field mappings. Each row pairs a ServiceNow field with a Value. The field picker suggests the standard columns of a suggested table. For any other column, including your instance’s own u_ columns, type the column name and choose Use custom name. A value can be fixed text, a variable from the Insert variable button beside it, or both, as in {{vendor:name}} renewal. Add mapping adds a row. Each column can appear once, and a step needs at least one row. Translating a value. A row’s Coverbase value to ServiceNow value pairs are listed under it, and the arrows button adds them to a row that has none. After the value’s variables resolve, a value listed on the left is sent as the one on the right, so a finding status label can land as your instance’s state choice. Add translation adds a pair, and a value not listed is sent unchanged. Editing the row’s field or value keeps its translations. Clicking the arrows button on a row that has translations removes them. Reformatting a date. The calendar button at the end of a row opens a date format for that value. Type a Python strftime pattern, such as %m-%d-%Y, and a value that resolves to a date is sent in that shape: 2027-01-31 becomes 01-31-2027. An empty date stays empty. The pattern must name at least one date part, such as %Y or %d. The locale formats %c, %x and %X, and a few rarer codes such as %f and %Z, are not accepted. If the value is not a date when the step runs, the step is skipped with a message that names the value. Click the calendar button again to remove the format. Apply table template fills in suggested rows when Coverbase has a template for the table and action. If the rows already hold something, it asks Replace field mappings? first.

Action	Table	Rows the template fills
Create	External Assessment (VRA)	`vendor` and `engagement`, from the vendor’s and service’s `sys_id`
Create	Third Party (Vendor)	`name` and `website`, from the vendor
Create	Engagement	`name` from the service, and `vendor` from the vendor’s `sys_id`
Create one per issue or finding, for issues	Third-party Risk Issue	`short_description`, `description`, and the `vendor` and `assessment` `sys_id`
Create one per issue or finding, for findings	Third-party Risk Issue	`short_description`, `description`, `explanation`, `due_date`, `vendor`, `assessment`, `assigned_to`, `state` and `applies_to`

Values are sent as written. A choice column stores your instance’s choice value, and a reference column stores a sys_id, so a label or an email address in either lands as text that your forms may not recognize. Check template rows against your instance before you switch the workflow on: the findings template sends the finding’s status label to state and the assignee’s email address to assigned_to. When a value needs translating, add translations to its row with the arrows button (see Translating a value above).

A variable with nothing behind it skips the whole step rather than sending a blank, exactly as described in Placeholders in action text.

Creating a record

Create makes one record and remembers which Coverbase record it belongs to.

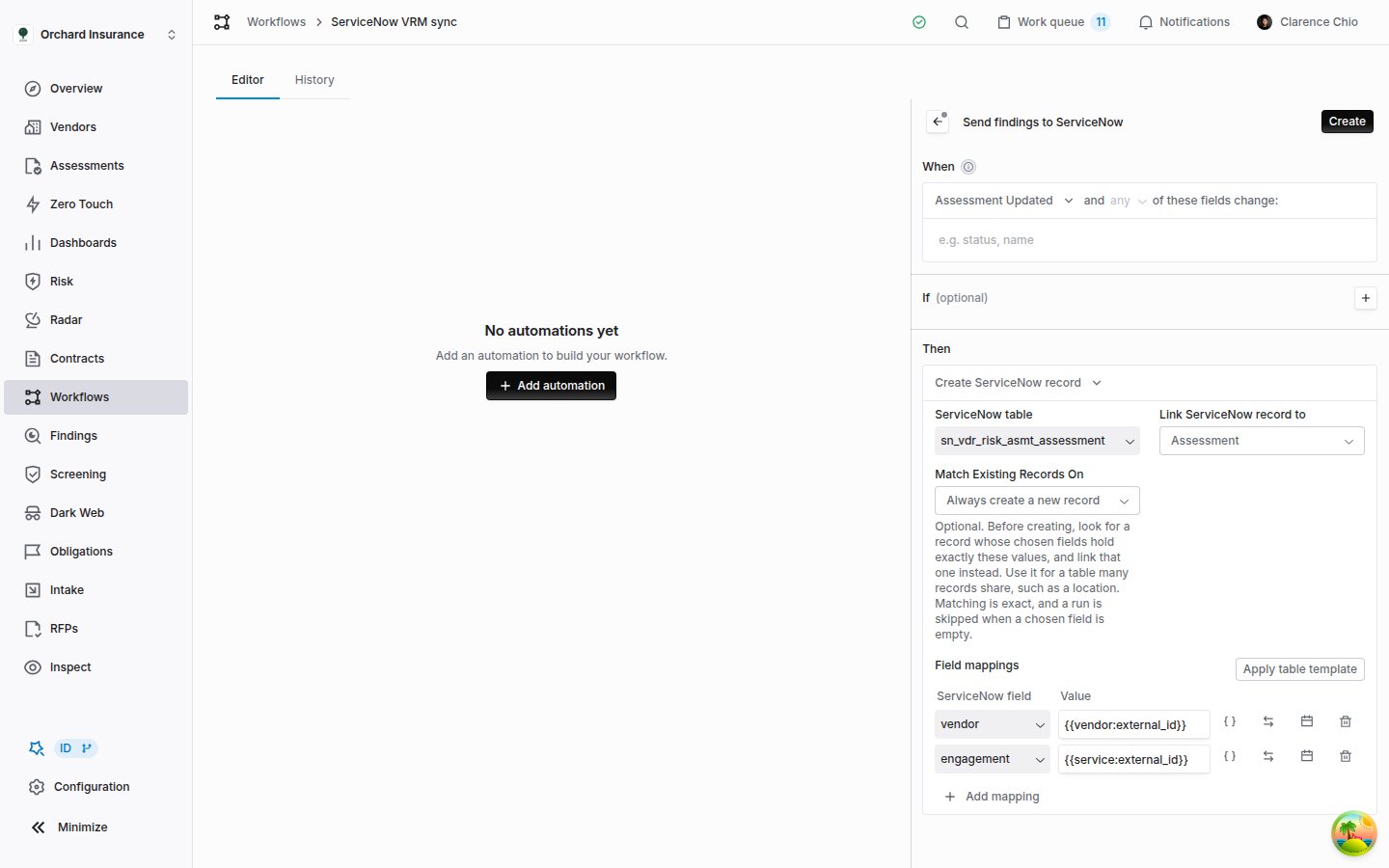

The Coverbase automation inspector with the Create ServiceNow record action, the sn_vdr_risk_asmt_assessment table, Link ServiceNow record to set to Assessment, Match Existing Records On and two field mappings — Create, writing an External Assessment (VRA) record linked to the triggering assessment, with the table template applied.

Field	What it does
ServiceNow table	The table the record is created in.
Link ServiceNow record to	The Coverbase record, taken from the triggering event, that the new record belongs to: Assessment, Vendor, Service, Finding, Contract, Procurement, Engagement or Work queue item. If the trigger cannot supply one, the step is Skipped.
Match Existing Records On	Optional. Before creating, look for a record whose chosen columns already hold exactly the values this step would send, and link that one instead. It lists the columns you have mapped. Leave it on Always create a new record unless many Coverbase records legitimately share one ServiceNow record, such as a location or a business application.
Field mappings	The record’s contents. See Mapping fields.

A Coverbase record gets at most one linked record per table from Create. A second run for the same Coverbase record is Skipped with “A ServiceNow record in <table> is already linked to this <record type>”. Push later changes with Update. When Match Existing Records On is set, the step searches first:

What the search finds	What the step does
No matching record	Creates the record and links it, as usual.
Exactly one	Links that record and leaves its contents unchanged.
More than one	Failed, listing the matching records. Remove the duplicates in ServiceNow or match on more columns.
A chosen column resolved to nothing	Skipped, since an empty value cannot identify a record.
A value containing `^`	Failed. ServiceNow reads `^` as a query separator.

Matching is exact, so a value of Acme Inc does not match a record holding Acme Inc., and the step creates a second record rather than linking one that may not be the same.

A Create step on an Updated trigger runs on every edit and is Skipped every time after the first. Put it on a Created trigger, or narrow the Updated trigger to the fields that matter, so the runs page stays readable.

Updating the linked record

Update changes the record that a Create step, or a match, linked to the same Coverbase record. Set ServiceNow table and Update record linked to to the same table and record type as that step, and map only the columns you want to change: the step sends those and leaves the rest of the record alone. If nothing is linked yet, the step is Skipped with “No ServiceNow record in <table> is linked to this <record type>”. To update a record Coverbase did not create, link it first with a Create step that uses Match Existing Records On, which links an existing record without changing it, or address it by sys_id with Send custom request. A typical pair: Create on Assessment Created opens the VRA record, and Update on Assessment Updated, watching the status field, sets the record’s state as the assessment moves.

One record per issue or finding

Create one per issue or finding turns an assessment’s problems into records, such as one Third-party Risk Issue each, in a single step.

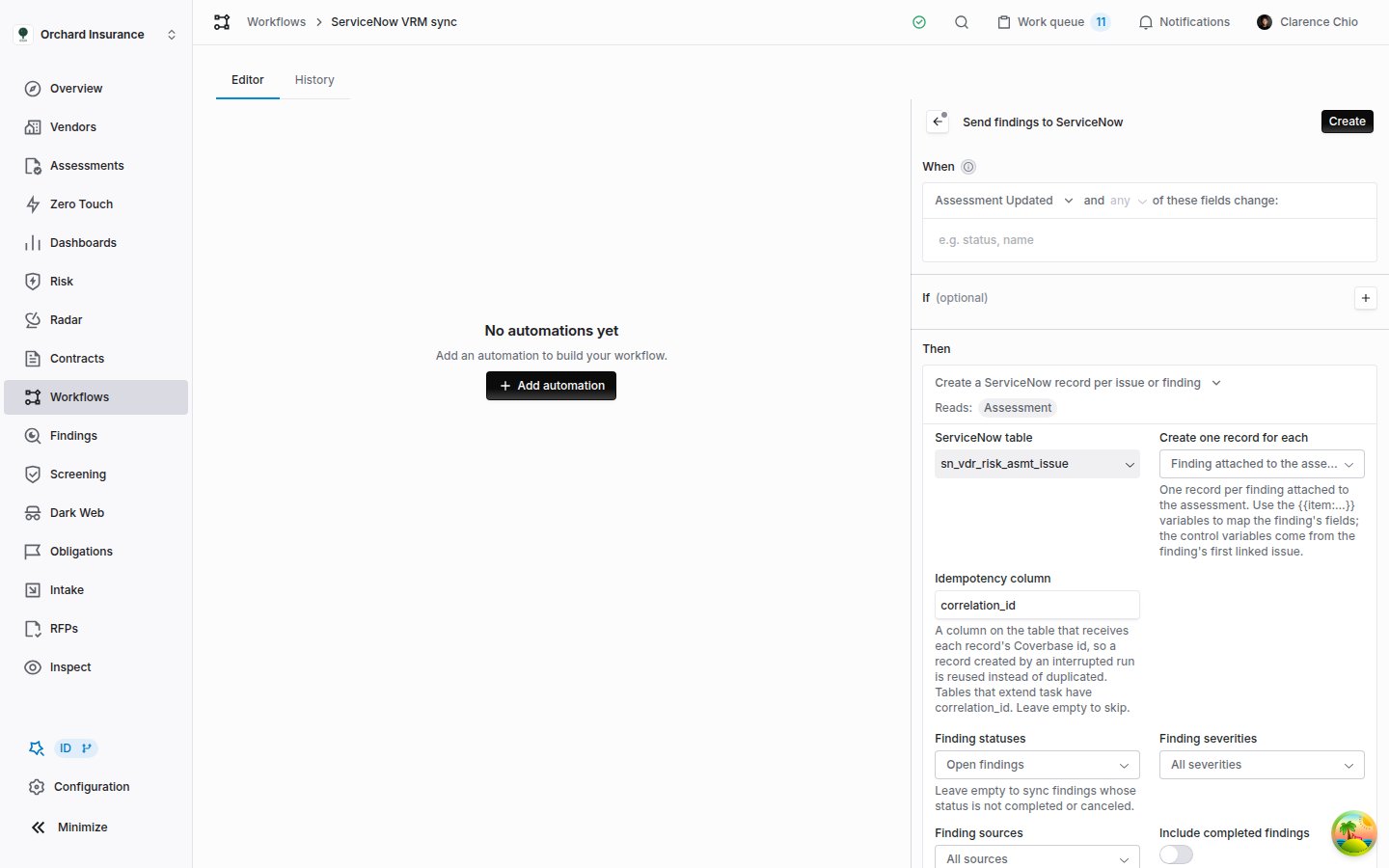

The Coverbase automation inspector with the per issue or finding action, the sn_vdr_risk_asmt_issue table, Create one record for each set to Finding attached to the assessment, and the Idempotency column set to correlation_id — Create one per issue or finding, set to create a Third-party Risk Issue for each finding attached to the assessment.

Field	What it does
ServiceNow table	The table each record is created in.
Create one record for each	Issue on the assessment: one record per unresolved issue. Finding attached to the assessment: one record per finding raised in the assessment or linked to it later.
Idempotency column	A column that receives each record’s Coverbase ID, `correlation_id` by default (tables that extend `task` have it). If a run is interrupted after ServiceNow created a record but before Coverbase recorded it, the next run finds that record by this column instead of creating a second one. It overrides a mapping row for the same column. Leave it empty only if the table has no suitable column.
Field mappings	What each record holds. The Insert variable menu adds the item’s own fields. See below.

For findings, five more settings choose which ones become records:

Setting	Default	What it does
Finding statuses	Open findings	With nothing chosen, findings whose status is not completed or canceled. Choosing statuses replaces that rule.
Finding severities	All severities	Limits the records to the chosen severity levels.
Finding sources	All sources	Limits the records to findings from the chosen sources, such as Raised in an assessment, Document review or Monitoring alert.
Include completed findings	Off	Also sends completed and canceled findings. Turning it on reveals Exclude canceled findings, which keeps canceled ones (a risk acceptance, for example) out. Both are unavailable once you choose statuses.
Only findings linked to an issue	Off	Skips ad hoc findings, which have no control reference or control effectiveness to map.

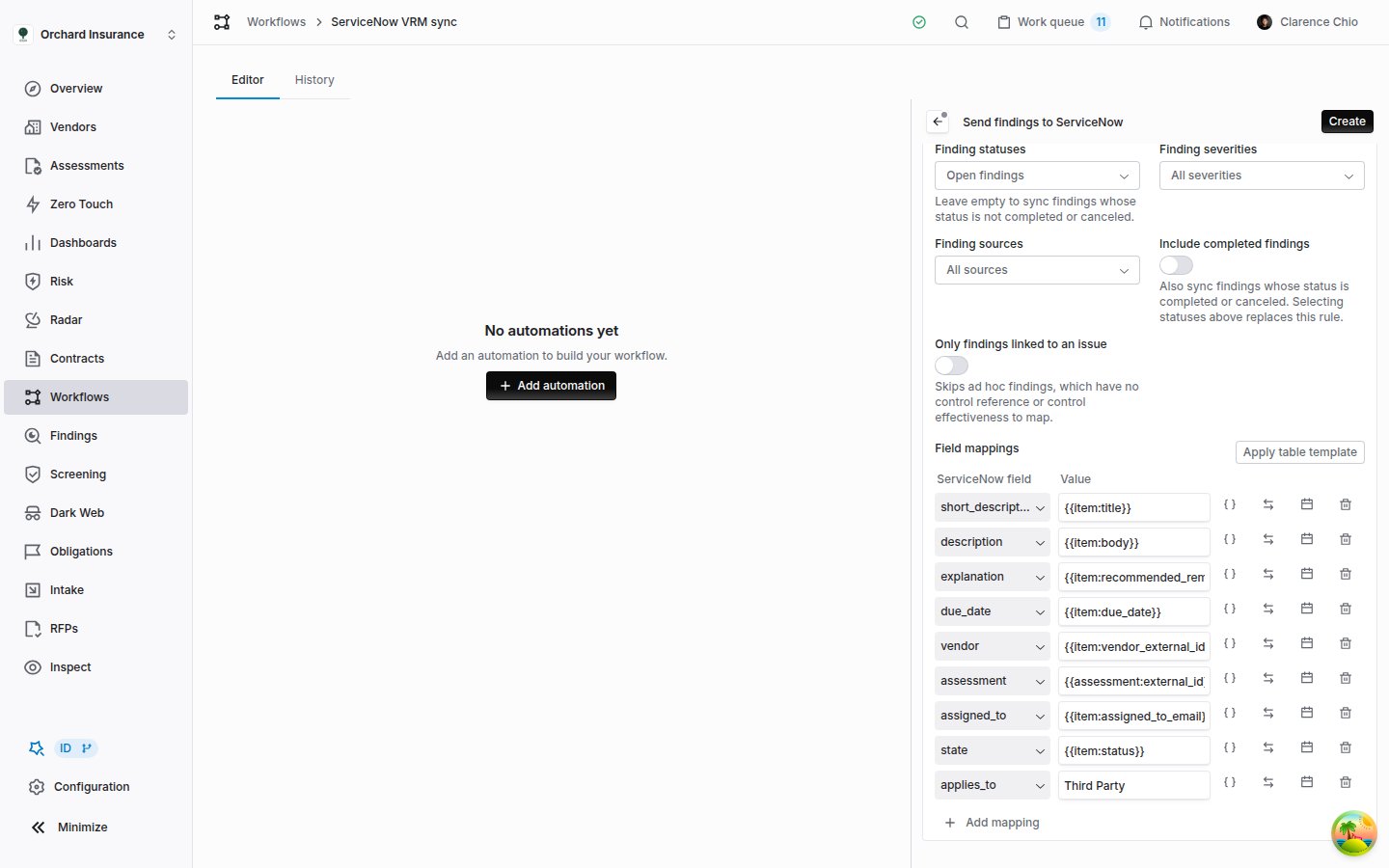

The Coverbase per finding action showing the finding status, severity and source filters, the three switches and nine field mappings using item variables — The finding filters and the field mappings the Third-party Risk Issue template fills in.

Item variables

Inside this action, {{item:...}} variables resolve to the issue or finding the record is for. Insert variable lists them under Finding fields, or under Issue fields and Control fields, next to the usual workflow variables. Custom fields on findings, issues and controls get groups of their own.

For a finding	For an issue
`{{item:title}}`, `{{item:body}}`, `{{item:recommended_remediation}}`	`{{item:title}}`, `{{item:justification}}`
`{{item:status}}`, `{{item:severity}}`, `{{item:risk_level}}`, `{{item:due_date}}`	`{{item:score}}`, `{{item:score_percent}}`, `{{item:issue_category}}`
`{{item:assigned_to_email}}`, `{{item:vendor_external_id}}`, `{{item:url}}`	`{{item:control.expectation}}`, `{{item:control.external_idx}}`
`{{item:control_reference}}`, `{{item:control_effectiveness}}`	`{{item:public_idx}}`, `{{item:question}}`, `{{item:response}}`

A finding has no control of its own, so its control variables come from its linked issue with the lowest index, and are blank for an ad hoc finding. Dates arrive as YYYY-MM-DD. An item variable with no value on one item sends a blank rather than skipping the step.

How the step behaves over time

Each item gets one record per table. The first run creates a record for every selected item. A later run creates records only for items that have none, so a finding added to the assessment afterwards goes out on the next run. With nothing new, the step is Skipped with “No unsynced findings on the assessment” (or issues).
A failure partway through keeps what landed. If ServiceNow rejects a record, the step is Failed with the error and “after creating N of M records”. The records already created stay linked, and the next triggering event resumes with the item that failed.
Service Now Sync Completed follows. Once every selected item has its record, Coverbase raises Service Now Sync Completed for the assessment. Hang the closing step on it, for example an Update of the VRA record linked to the assessment. It can fire again when the step runs again with nothing new to send, so make the closing step safe to repeat.
Finding records stay reachable. Each finding’s record is linked to that finding, so an Update step with Update record linked to set to Finding, on a Finding Updated trigger, keeps the ServiceNow record current as the finding changes. Records made for issues cannot be targeted by Update.

Sending a custom request

Send custom request sends one request, exactly as you write it, to any API path on your instance: a Table API record Coverbase did not create, or a scoped endpoint your ServiceNow team built.

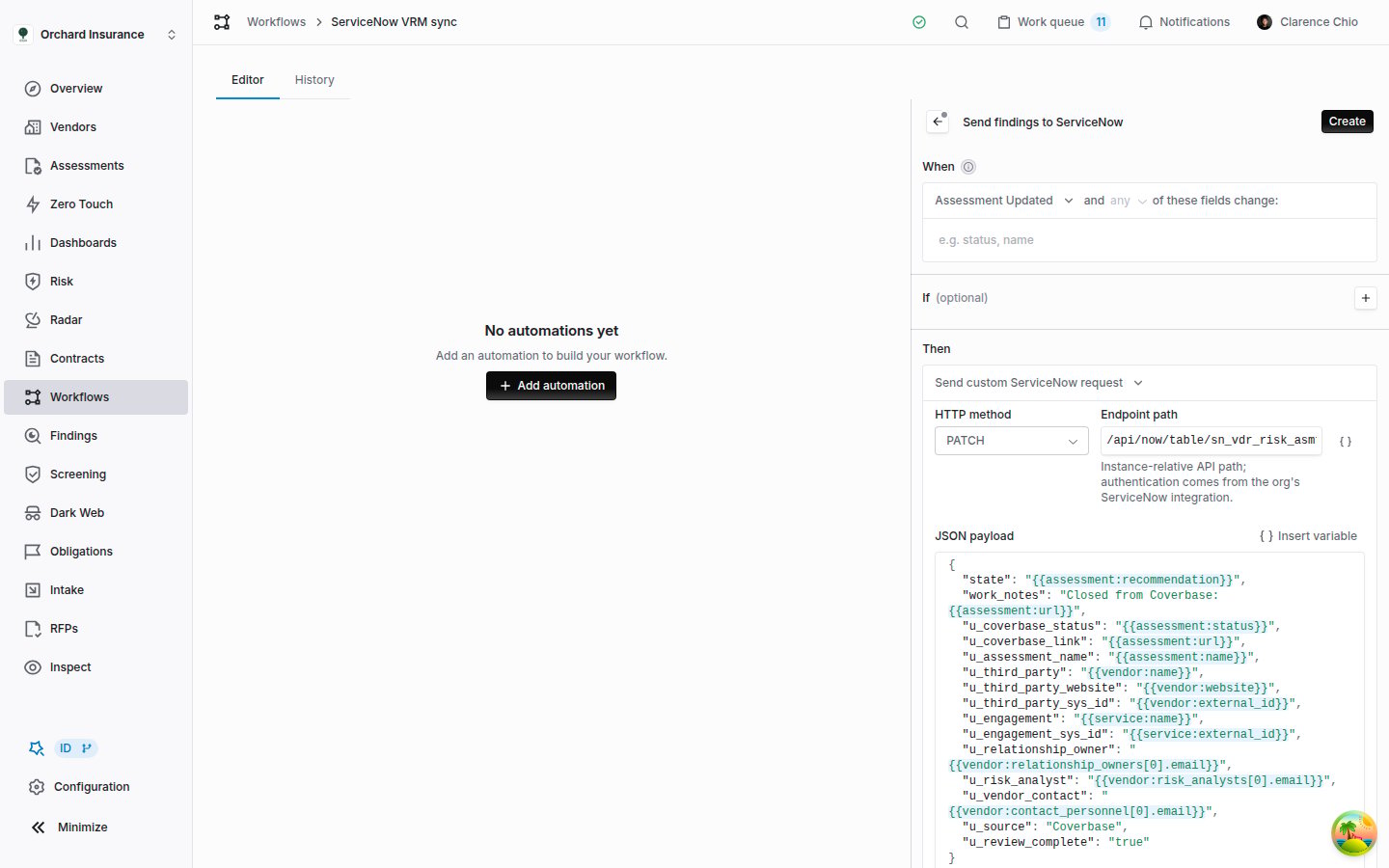

The Coverbase automation inspector with the Send custom ServiceNow request action, HTTP method PATCH, an endpoint path ending in the assessment external ID variable, and a JSON payload of workflow variables — Send custom ServiceNow request, patching the VRA record whose sys_id Coverbase holds as the assessment's external ID.

Field	What it does
HTTP method	`POST`, `PATCH` or `PUT`.
Endpoint path	The path after your instance’s base URL, starting with `/api/`, for example `/api/now/table/sn_vdr_risk_asmt_assessment/{{assessment:external_id}}`. Variables work anywhere in it. It cannot contain `?`, `#`, `%` or empty and relative segments; put query strings in Query Parameters. The connection supplies the authentication.
JSON payload	A JSON object, sent exactly as written. Variables resolve inside string values. Insert variable above the editor adds one at the cursor.
Query Parameters	Optional Name and Value pairs added to the URL. `sysparm_input_display_value` set to `true`, for example, lets the Table API accept display labels instead of choice codes.
Date Formats	Optional. Each row names a Payload field and a strftime Format, such as `%m-%d-%Y`, applied after the variables resolve, so `2027-01-31` is sent as `01-31-2027`. An empty date stays empty. Formats apply before Value Translations.
Value Translations	Optional. Each row names a Payload field and rewrites a Coverbase value in it to a ServiceNow value after the variables resolve, so `Approved` can be sent as `3`. A value with no row is sent unchanged.

Three payload forms go beyond plain text:

Leave a key out when its value is empty. Add |omitempty inside the braces, as in "u_rto": "{{questionnaire:answer:question_perma_id|omitempty}}". When the answer is blank, the key is dropped instead of the whole step being skipped. It works only when the placeholder is the key’s entire value, and not in the path or query parameters.
Send a list or a number. For a questionnaire trigger, Selected answers to a question (list) and Selected answers to a question (objects) arrive as a JSON array, and Numeric value of an answer as an unquoted number, when the placeholder is the key’s entire value.
Translate or reformat a value. Value Translations and Date Formats reach only top-level fields that are plain text in the payload. If a row names any other field, the form shows an error and the automation will not save.

The request links nothing in Coverbase and raises no events, so a later Update step cannot find what it wrote. The run step shows the path it called, the payload and ServiceNow’s response.

Uploading documents

Upload documents copies files from Coverbase into ServiceNow Document Management. Each document becomes a document record (ds_document) with a published version (ds_document_version) that holds the file.

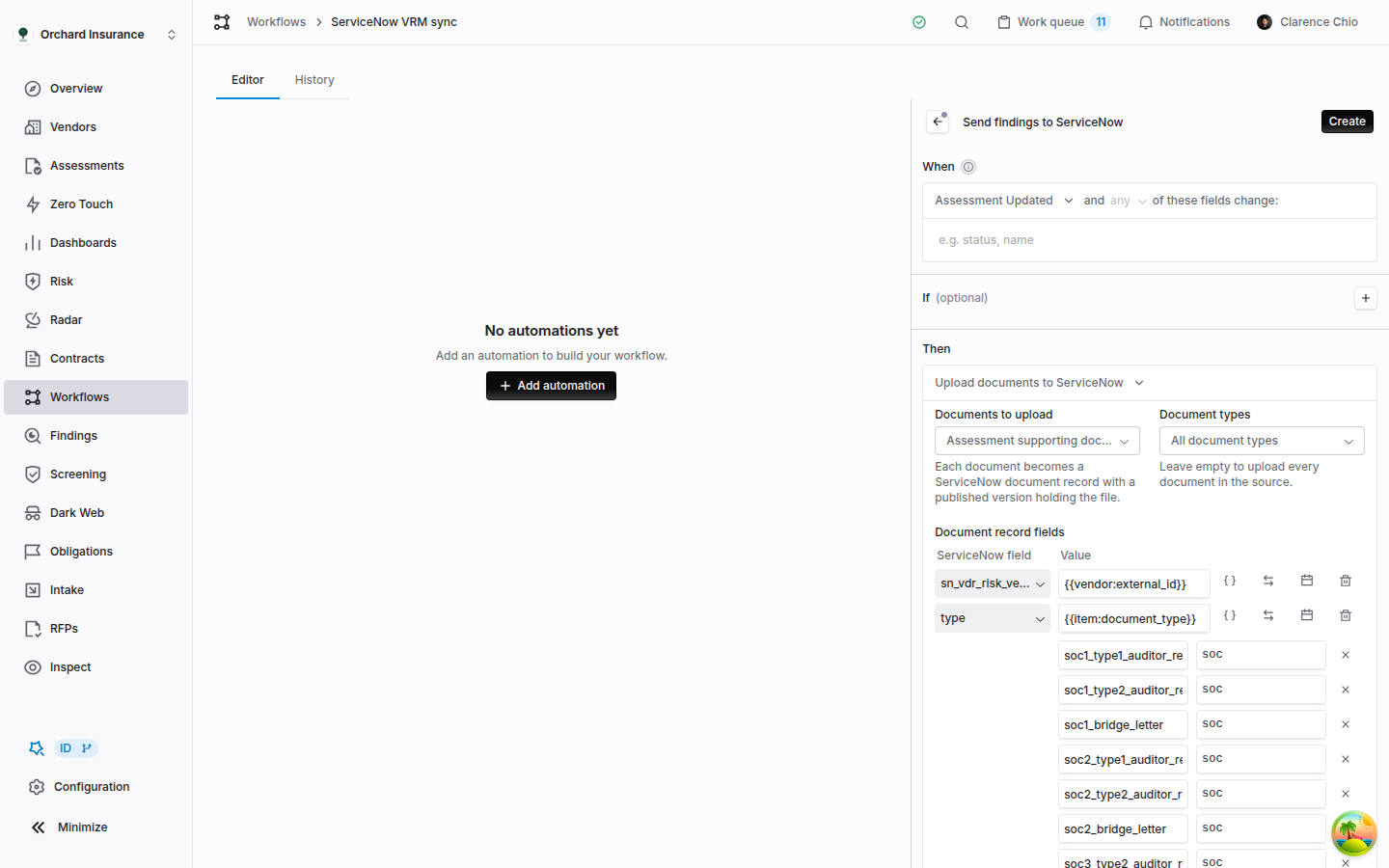

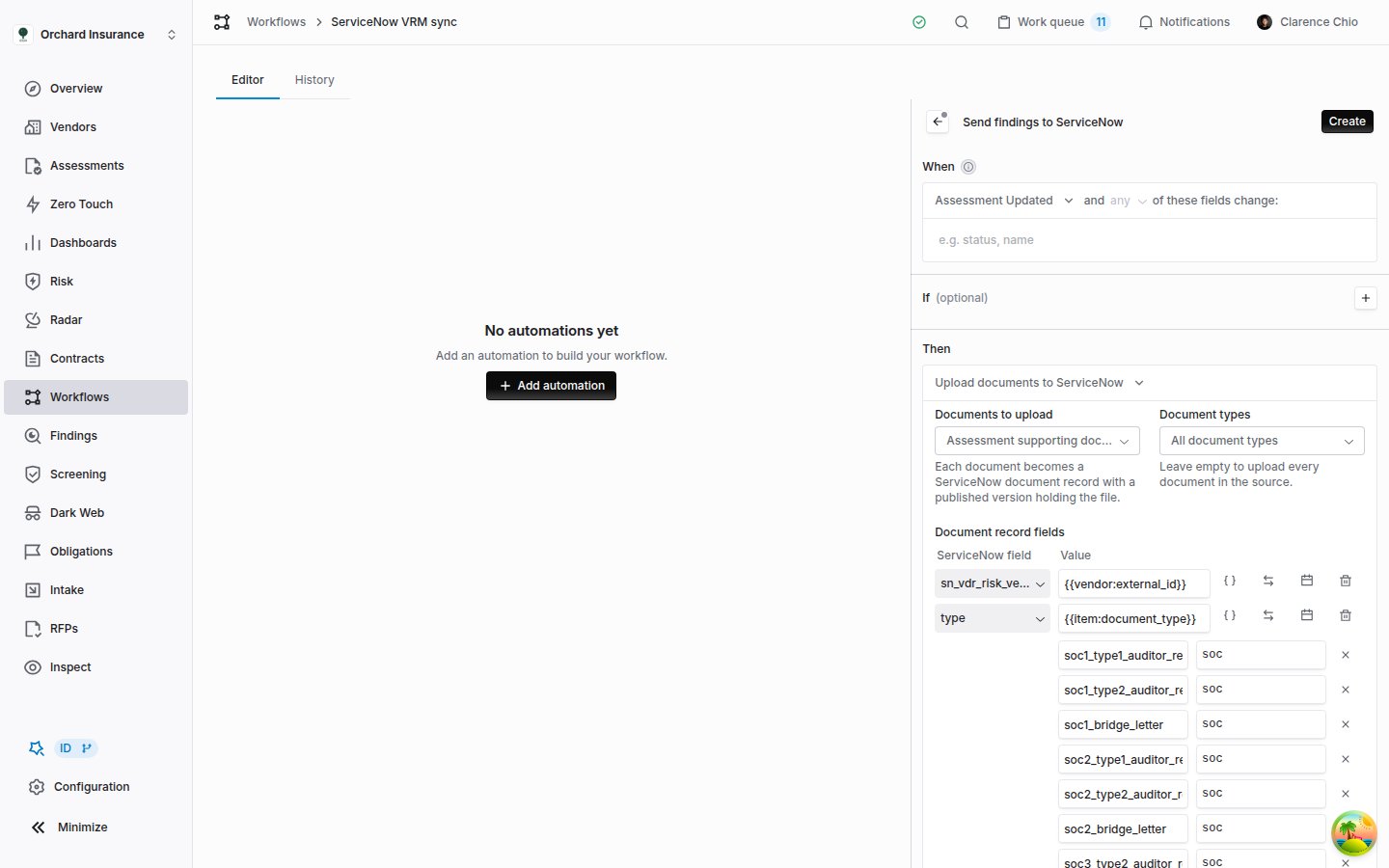

The Coverbase automation inspector with the Upload documents to ServiceNow action, Documents to upload set to assessment supporting documents, All document types, and the document record field mappings, with the type row's value translations open and each SOC report type sent as soc — Upload documents to ServiceNow with its default document record fields.

Field	What it does
Documents to upload	Assessment supporting documents, The document from the trigger event (for a vendor document trigger), or Documents attached to the questionnaire submission. If the trigger cannot supply them, the step is Skipped.
Document types	Limits the upload to the chosen types. Leave it on All document types to send everything in the source.
Document record fields	Columns on the document record. The defaults link it to the third party (`sn_vdr_risk_vendor` from `{{vendor:external_id}}`), set its `type` from the Coverbase document type, and describe it as the document type for the vendor. The name defaults to the file name and sharing is on; a row for either column overrides it.
Document version fields	Columns on the version, such as your instance’s received and valid-to date columns, from `{{item:uploaded_at}}` and `{{item:expiration_date}}`.

The Insert variable menu adds a Document group for these fields: Name, File name, Document type, Document type label, Uploaded on, Valid to, Uploaded by, Uploaded by email, Size in bytes and Coverbase URL. The action manages a few columns itself and refuses a mapping for them: state, default_version and external_file_url on the document record, and document on the version. external_file_url holds the document’s Coverbase link, which the action uses to find its own work again.

The default type row translates document types. It sends Coverbase document types as the choice values a third-party risk instance usually uses (a SOC 2 report becomes soc, a master services agreement msa). Its translations are listed under the row, so change them there to match your instance. The row’s arrows button removes them.

Uploads run in the background. The step itself reads “Queued N document upload(s) to ServiceNow”, and each file is linked when its upload finishes, which raises Service Now Record Created. A document that is already in ServiceNow is not sent again, and a step with nothing new to send is Skipped with “Every document is already in ServiceNow”. An interrupted upload picks up the document it already created instead of making a second one. Files of 1 GB or more are not uploaded.

Reading what a step sent

Open the run from the workflow’s History tab or from Workflow Runs (see Reading the runs page). On a Create, Update or per-item step, the Output line links each record the step wrote to that record in your instance. Click the step’s name to expand it: under the step and component IDs, each call is listed with its method and URL, the Request payload, the Response body, and the error when there was one. For Upload documents, the uploads finish after the step, and each attempt is added to the step when it does: the file name, size and type, and the new record’s sys_id or the reason it failed. Reload the run to see them.

Troubleshooting

What you see	Cause	Fix
No ServiceNow record group in the action picker	The ServiceNow connection is not saved.	Save it on the ServiceNow GRC card under Configuration → External Integrations, or ask whoever manages integrations.
No Create one per issue or finding in the group	The trigger cannot reach an assessment.	Use an assessment trigger, or one whose record leads to an assessment.
Skipped: “ServiceNow integration is not configured”	The step ran with no saved connection.	Save the connection, then cause the trigger again.
Skipped: “A ServiceNow record in … is already linked to this …”	Create already ran for this Coverbase record and table.	Use Update for later changes. Move the Create step to a Created trigger if it keeps skipping.
Skipped: “No ServiceNow record in … is linked to this …”	Update found no record linked to this Coverbase record in that table.	Check that the table and Update record linked to match the Create step, and that the create has run.
Skipped with a message about an empty external ID	The vendor, service or assessment has no ServiceNow `sys_id` in Coverbase.	Load the IDs through the ServiceNow push or the Import API, or map the column from a custom field that holds them.
Skipped: “Could not resolve a … from the triggering event”	The trigger does not lead to the record the step links to or reads.	Pick a record type the trigger supplies, or change the trigger.
Failed with a ServiceNow error such as a 403	The connection’s account lacks write access to that table.	Ask your ServiceNow administrator to grant it, then cause the trigger again.
Failed: ”… records in … already match”	Match Existing Records On found more than one record.	Remove the duplicates in ServiceNow, or match on more columns.
Failed partway, “after creating N of M records”	ServiceNow rejected one record in the batch.	Fix the cause in the error, then cause the trigger again. The step resumes with the item that failed.
A choice or reference field is blank or shows raw text in ServiceNow	The mapped value is a label or an email, not a choice value or `sys_id`.	Map a value your instance stores, add translations to the row (see Translating a value), or use Send custom request with Value Translations or `sysparm_input_display_value`.
”Enter an instance-relative path beginning with /api/“	The Endpoint path is a full URL or does not start with `/api/`.	Enter only the path; the connection supplies the instance.
A translation row shows an error and the automation will not save	The Payload field is missing from the payload, or is not plain text there.	Name a top-level text field from the JSON payload.
A date format shows “Use a strftime pattern with at least one date part”	The pattern names no date part, or uses a code Coverbase does not accept, such as `%c`, `%x` or `%X`.	Use a pattern such as `%m-%d-%Y` or `%Y/%m/%d`.
Skipped: ”… is not an ISO date, so the date format … cannot apply”	The mapped value is not a date, so the format cannot apply.	Remove the format from that row, or map a date variable.
The document `type` in ServiceNow is a raw Coverbase type	The default `type` row’s translations were removed, or the row was deleted.	Delete the document record rows and click Apply default mappings.
The step after Service Now Sync Completed runs several times for one assessment	The per-item step ran again with nothing new to send, and each run ends with the event.	Narrow the per-item step’s trigger, for example to the assessment’s status changing, and make the closing step safe to repeat.
Test connection cannot be clicked	The connection has not been saved, or the form has unsaved changes.	Click Save ServiceNow Configuration, then test.
